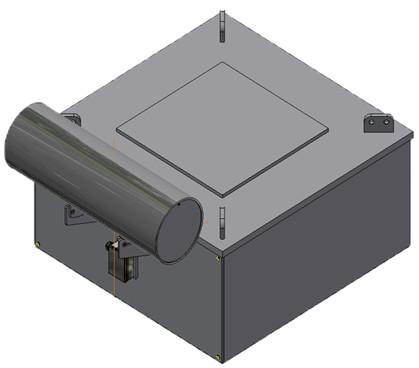

SUSPENDED ELECTROMAGNETIC IRON SEPARATOR is used to hang above the moving material, used to remove powder, granular or block non-magnetic materials in the miscellaneous iron removal device, widely used in chemical industry, mining, glass, building materials and other industries.

Magnetic cleaning is divided into manual cleaning and self-cleaning.

Working principle of the electromagnetic iron separator: the electromagnetic coil is energized to generate a magnetic field, it forms a magnetic circuit with the carbon steel box and the internal iron core, and releases a high gradient magnetic field at the bottom of the box.

When the material passes through the bottom of the device, the magnetic material is captured by the magnetic field and adsorbed on the bottom plate of the iron remover. Move the iron remover to the outside of the work area during manual cleaning,The magnetic material falls off automatically after cutting off the magnetic field.

The advantages of manual iron separator are simple structure, reliable operation and easy maintenance; inconvenient cleaning, labor consumption, and stop line during cleaning.

Self-leaning type iron remover is based on the manual cleaning type to add reducer, iron unloading belt, drum, main frame and other devices. When working, the ferromagnetic material constantly adsorbed on the iron remover will be thrown automatically out through the rotation of the iron unloading belt to achieve the purpose of automatic iron unloading. Its advantages are that it can efficiently remove iron and clean up without manual participation. The disadvantage is it is more complex than the manual cleaning structure, needs maintenance, and the belt needs to be replaced regularly.

●Company Development
Founded in 2018, the company is specialized in the design and production of various magnetic separators, like

permanent drawer type grate magnets, rotary grate magnets, dry powder electrical magnetic separator,

slurry electrical magnetic separator, drum, eddy current separators etc. Our products mainly serve the

industries like food, chemicals, cement, minerals etc. Currently,we have 5 technicians, among them,2 technicians

are the bachelors, and the main team members have 16 years of experience in the magnetic separation industry.
●Research & Development:
  We are strong at the design and the product improvement, based on the study of the advanced technology,

our team members continue to create and improve our products, with our strong simulation and rich

knowledge and full application experience..
●Quality Assurance:
We passed the ISO9001 certificate, and stick to the lean management in the production and guarantee the

outstanding quality by the internal quality control and processing inspection
●Patents and Copyrights:
we obtained more than 18 patents and copyrights in the product design and the automatic application.
