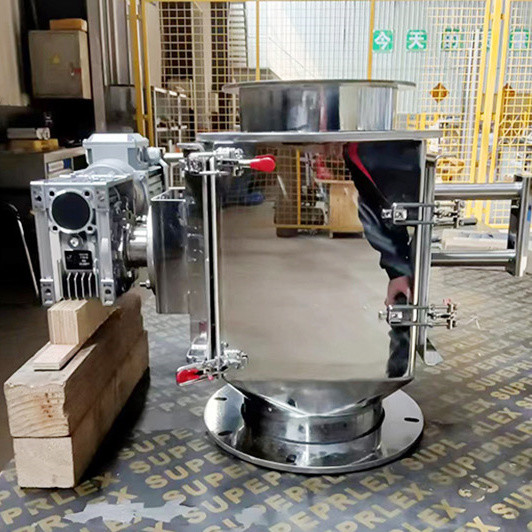

Energy-Saving Grid-Type Iron Remover | Automatic Slag Cleaning | 24/7 Continuous Operation | Global Delivery Supported.

• Characteristics
  • Good Iron Removal Effect: Using rare earth permanent magnet materials as the magnetic source, the magnetic rods have the characteristics of high coercive force and high remanence, and can be combined into a composite magnetic system to form a high-gradient magnetic field with strong magnetic force and high capture ability. It can effectively remove strong magnet impurities, weakly magnetic iron pollutants, and other fine magnetic impurities.
  • Stable Performance: The permanent magnet rods inside can ensure that the magnetic force will not decrease by more than 5% within eight years, and the service life can reach more than 15 years, and they can be reused multiple times. At the same time, the structure is firm, not easy to block, and easy to clean, which can effectively reduce the number of iron unloading times and reduce the labor intensity.
  • Wide Application Range: It can be used to remove iron impurities in dry powder materials, granular materials, flake materials, etc. It is suitable for various working conditions of normal pressure, negative pressure, and positive pressure. The standard product is suitable for working temperatures ≤ 80 degrees Celsius, and high-temperature products that can adapt to working temperatures of up to 200 degrees Celsius can also be provided.
  • Energy-saving and Environmentally Friendly: There is no need for electrical excitation, no control circuit, no excitation coil, which saves electricity and energy. There is no problem of temperature rise, and the magnetic field strength is constant. There is also no problem of insulation and withstand voltage.
  • Convenient Installation: The structure is compact, small in size, and light in weight. According to the user's needs, a design that can adapt to the requirements of various end interfaces can be provided. The installation is simple and can be directly installed at positions such as pipelines, chutes, and bins on the production line.

Production Capacity Requirements

• • High-yield Production Lines: In large-scale production lines, the material flow is large, and a grille permanent magnet iron remover with strong processing capacity needs to be selected to ensure that a large amount of materials can be removed of iron within a short time. For example, in some large-scale mining production lines, chemical raw material production lines, etc., an iron remover with a larger width and a larger number of magnetic rods may need to be selected to improve the iron removal efficiency and meet the requirements of the production progress.
  • Small-yield Production Lines: For small-scale production enterprises or laboratories and other places, the material output is low, and a small-sized grille permanent magnet iron remover can be selected. Its structure is compact, occupies a small area, can meet the iron removal requirements of small batches of materials, and also has a high cost performance.

●Company Development
Founded in 2018, the company is specialized in the design and production of various magnetic separators, like

permanent drawer type grate magnets, rotary grate magnets, dry powder electrical magnetic separator,

slurry electrical magnetic separator, drum, eddy current separators etc. Our products mainly serve the

industries like food, chemicals, cement, minerals etc. Currently,we have 5 technicians, among them,2 technicians

are the bachelors, and the main team members have 16 years of experience in the magnetic separation industry.
●Research & Development:
  We are strong at the design and the product improvement, based on the study of the advanced technology,

our team members continue to create and improve our products, with our strong simulation and rich

knowledge and full application experience..
●Quality Assurance:
We passed the ISO9001 certificate, and stick to the lean management in the production and guarantee the

outstanding quality by the internal quality control and processing inspection
●Patents and Copyrights:
we obtained more than 18 patents and copyrights in the product design and the automatic application.
