Structural Features

• Drum: Usually made of stainless steel or wear-resistant materials, with a smooth surface to ensure that magnetic particles can be adsorbed and separated smoothly. Permanent magnets or electromagnetic coils are installed inside the drum to generate a magnetic field.
• Drive Device: It provides power to make the drum rotate, generally composed of a motor, a speed reducer, and a coupling, etc. The drive device can precisely control the rotation speed of the drum to meet the separation requirements of different materials.
• Frame: It supports the entire equipment. Usually, it is made of a steel structure and has sufficient strength and stability to ensure that the equipment will not shake or deform during operation.
• Feeding Device: It uniformly conveys the materials to be separated onto the surface of the drum, ensuring that the materials can fully contact the drum under the action of the magnetic field and improving the separation effect.
• Discharging Device: It includes components such as a scraper and a belt, which are used to scrape off the magnetic particles adsorbed on the surface of the drum or convey them to a designated collection container.

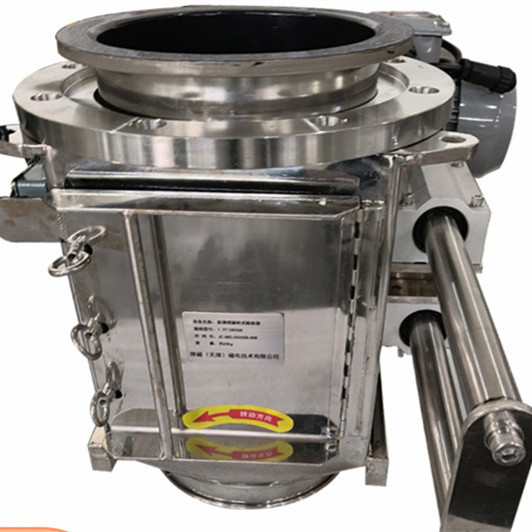

• Manual-clean type:
  Extract the grate ring by hand to clean, with the help of the bearing, it is very convenient for the labors to pull out the magnetic system, after pulling out, the magnetic system can be rotated 90 degrees to clean.
  Sleeve Manual-clean type:
  Comparing manual clean type,this design is very easy to clean because only need to clean the sleeve
  it’s suitable for the situation which not need very strong strength.

• Connecting ID	CASE L*W*H(mm)	Bar quantity	Peak gauss
  DN150(φ159)	230*200*450	6	16000 GS 15000 GS 14000 GS 13000 GS 12000 GS
  DN200(φ219)	250*250*45	8
  DN250(φ273)	300*300*470	10
  DN300(φ325)	350*350*510	12

●Company Development
Founded in 2018, the company is specialized in the design and production of various magnetic separators, like

permanent drawer type grate magnets, rotary grate magnets, dry powder electrical magnetic separator,

slurry electrical magnetic separator, drum, eddy current separators etc. Our products mainly serve the

industries like food, chemicals, cement, minerals etc. Currently,we have 5 technicians, among them,2 technicians

are the bachelors, and the main team members have 16 years of experience in the magnetic separation industry.
●Research & Development:
  We are strong at the design and the product improvement, based on the study of the advanced technology,

our team members continue to create and improve our products, with our strong simulation and rich

knowledge and full application experience..
●Quality Assurance:
We passed the ISO9001 certificate, and stick to the lean management in the production and guarantee the

outstanding quality by the internal quality control and processing inspection
●Patents and Copyrights:
we obtained more than 18 patents and copyrights in the product design and the automatic application.
