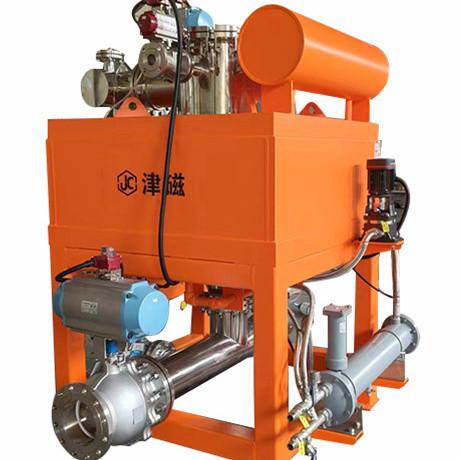

Stainless Steel Magnetic Filter, Liquid Slurry Strong Magnetic Rod, Iron Absorber.

Technical Advantages
High Efficiency: Captures micron- to millimeter-scale particles with 90%–99% removal rates.
Corrosion Resistance: Compatible with acidic, alkaline, or high-salinity environments.
Low Maintenance: Automated cleaning minimizes downtime; magnet lifespan exceeds 10 years.
Energy Efficiency: Permanent magnets consume zero power; electromagnets activate on demand.
Customization: Adaptable to pipe diameters (DN50–DN500), pressure ranges (ambient to 10 bar), and mounting orientations (vertical/horizontal).

Structure and Key Components
Magnetic System:
Permanent Magnet Type: Uses neodymium iron boron (NdFeB) or ferrite magnets with a field strength of 5,000–12,000 Gauss. No external power required, corrosion-resistant.
Electromagnetic Type: Generates adjustable fields (up to 20,000 Gauss) via energized coils, ideal for high-precision separation.
Magnetic Media:
Magnetic Rod Arrays: Parallel rods create dense magnetic zones for low-concentration, fine-particle slurries.
Magnetic Drums: Rotating drums with scrapers or reverse flushing for high-flow slurries.
Magnetic Grids: Mesh-like grids intercept large iron particles, often used as pre-filters in pipelines.
Chamber and Seals: Stainless steel (grades 304/316L) or engineering plastics (PP, PVDF) ensure corrosion and wear resistance, with sealed flanges to prevent leaks.
Cleaning Systems:
Manual Cleaning: Post-shutdown rod removal or manual cleaning via access ports.
Automatic Cleaning: PLC-controlled high-pressure spray, pneumatic scrapers, or demagnetization for uninterrupted operation.
Auxiliary Systems: Flow meters, pressure sensors, and alarms monitor slurry velocity and contamination levels.

●Company Development
Founded in 2018, the company is specialized in the design and production of various magnetic separators, like

permanent drawer type grate magnets, rotary grate magnets, dry powder electrical magnetic separator,

slurry electrical magnetic separator, drum, eddy current separators etc. Our products mainly serve the

industries like food, chemicals, cement, minerals etc. Currently,we have 5 technicians, among them,2 technicians

are the bachelors, and the main team members have 16 years of experience in the magnetic separation industry.
●Research & Development:
  We are strong at the design and the product improvement, based on the study of the advanced technology,

our team members continue to create and improve our products, with our strong simulation and rich

knowledge and full application experience..
●Quality Assurance:
We passed the ISO9001 certificate, and stick to the lean management in the production and guarantee the

outstanding quality by the internal quality control and processing inspection
●Patents and Copyrights:
we obtained more than 18 patents and copyrights in the product design and the automatic application.
