Wet Fully Automatic Magnetic Separator, Slurry Magnetic Separation Equipment Is Preferred, Automatic Unloading And Slurry Iron Detacher.

As a critical solution for metal contamination in wet processes, the Slurry Magnetic Separator delivers precision and reliability. Users should collaborate with suppliers to tailor magnetic systems, automation levels, and maintenance plans based on slurry characteristics and operational needs, maximizing efficiency and cost-effectiveness.

Working Principle

1. When the electromagnetic coil is energized, it forms a magnetic field circuit with the carbon - steel box, generating a strong magnetic field inside the equipment cavity. The magnetic conductive medium placed in the hollow cavity accumulates and amplifies the magnetic field, creating a sorting area with high field strength and high gradient.
2. As the slurry passes through the magnetic - concentrating medium from bottom to top, non - magnetic materials pass through smoothly and flow out from the material outlet, while magnetic substances are adsorbed onto the magnetic - concentrating medium.
3. An electric ball valve is installed on the material pipeline. The magnetic field is periodically cut off through PLC automatic control, and the pipeline is switched to the impurity - discharge position. Flushing water and compressed air enter, washing the magnetic substances off the magnetic - concentrating medium and discharging them from the iron - unloading port. In this way, magnetic impurities are separated, and high - purity materials are obtained.
4. The coil is cooled by the circulation of insulating transformer oil. The circulating water exchanges heat with the insulating oil to cool the oil, ensuring the stable operation of the system.

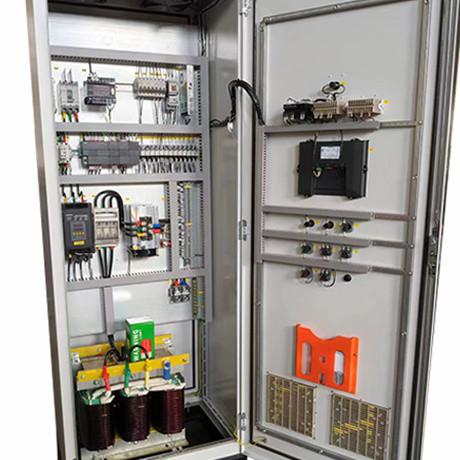

5. It uses an HMI (Human - Machine Interface) for operation and PLC for full - automatic control, enabling automatic iron removal, automatic slag discharge, and automatic alarm. It can achieve unmanned automatic operation and status monitoring.

6. S/N	Model Number	Background strength	Capacity(m³/h)
   1	CTS 150	3500/5000/6500/10000 Gs	6
   2	CTS 250		15
   3	CTS 300		21
   4	CTS 450		48
   5	CTS 500		60
   6	CTS 600		72
   7	CTS 700		115
   8	CTS 800		150

●Company Development
Founded in 2018, the company is specialized in the design and production of various magnetic separators, like

permanent drawer type grate magnets, rotary grate magnets, dry powder electrical magnetic separator,

slurry electrical magnetic separator, drum, eddy current separators etc. Our products mainly serve the

industries like food, chemicals, cement, minerals etc. Currently,we have 5 technicians, among them,2 technicians

are the bachelors, and the main team members have 16 years of experience in the magnetic separation industry.
●Research & Development:
  We are strong at the design and the product improvement, based on the study of the advanced technology,

our team members continue to create and improve our products, with our strong simulation and rich

knowledge and full application experience..
●Quality Assurance:
We passed the ISO9001 certificate, and stick to the lean management in the production and guarantee the

outstanding quality by the internal quality control and processing inspection
●Patents and Copyrights:
we obtained more than 18 patents and copyrights in the product design and the automatic application.
