    PLC Self Cleaning Rotating Permanent Magnetic Separator For Scenarios manual drawer type

    Ask Lasest Price
    Brand Name : JC
    Model Number : JC-01
    Price : 100,000
    Payment Terms : T/T,BA
    Supply Ability : Strong
    Delivery Time : 2 to 4 weeks
    • Product Details
    • Company Profile

    PLC Self Cleaning Rotating Permanent Magnetic Separator For Scenarios manual drawer type


    The pneumatic self-cleaning rotating permanent magnet magnetic separator is suitable for scenarios where manual cleaning is inconvenient, and it has high efficiency.

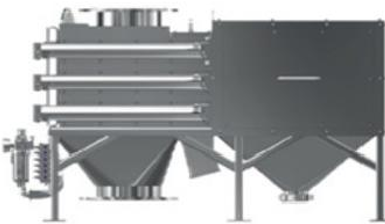

    PNEUMATIC SELF-CLEAN DRAWER TYPE MAGNETIC SEPARATOR

    ●Work Principle

    On the basis of manual drawer type , the self-cleaning one increases the automatic cleaning structure, controlled by PLC, the cleaning system can set automatic iron removal frequency and interval time according to the iron content, the system will automatically clean up miscellaneous iron according to the set time, without manual intervention, so the automatic cleaning one can meet the continuous work of the production line.

    PLC Self Cleaning Rotating Permanent Magnetic Separator For Scenarios manual drawer type PLC Self Cleaning Rotating Permanent Magnetic Separator For Scenarios manual drawer type

    ●Characterics

    1,Continuous feeding can be achieved to ensure continuous production

    2,the Unique closed design of the can be achieved to ensure no leakage whatever the positive pressure and negative pressure conditions

    3,the scraper and the ring is very simple and durable, easy to take and clean

    4,Special non-metal scraping ring to ensure good result and long life

    5,The slide runs smoothly and the speed is adjustable

    6,The magnetic system mechanism is equipped with a protective cover to increase safety and prevent foreign objects from falling into it

    7,Customized to meet the customers’ requests;

    8,For materials with poor fluidity, optional vibrator is added;

    9,synchronous and asynchronous iron unloading function,

    10,Coating: ETFEPTFE Nano-ceramic spraying


    Connecting Piping ID(mm)

    Layer

    Bar quantity

    Height(mm)

    Peak gauss Value

    DN200(φ219

    3

    10(3+4+3)

    670

    10000GS

    12000GS

    14000GS

    15000GS

    4

    14(3+4+3+4)

    780

    DN250(φ273)

    3

    13(4+5+4)

    670

    4

    18(5+4+5+4

    780

    6

    27(5+4+5+4+5+4)

    1000

    DN300(φ325)

    3

    16(5+6+5)

    670

    4

    22(5+6+5+6)

    780

    6

    33(5+6+5+6+5+6)

    1000
