    Food Processing And Production Electromagnetic Iron Remover 380V For Dry Powder

    Ask Lasest Price
    Brand Name : JC
    Model Number : JC-002
    Price : 300,000
    Payment Terms : T/T,BA
    Supply Ability : Strong
    Delivery Time : 2 to 4 weeks
    • Product Details
    • Company Profile

    Food Processing And Production Electromagnetic Iron Remover 380V For Dry Powder

    In food processing and production, the electromagnetic iron remover can efficiently separate iron impurities through the electromagnetic field.


    For dry powder materials in the metal mining industry, the suspended electromagnetic iron remover is a magnetic separation device with a large processing capacity.

    ●Purpose

    If it includes the slurry processing in the production, It is recommended to separate in the slurry state, because it is very easy to disperse,

    ●Work Principle

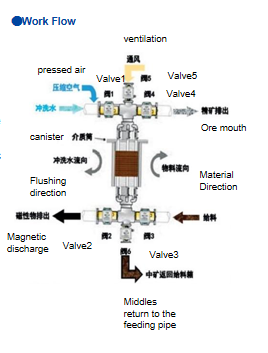

    The electromagnet consists of a solenoid coil encased in a steel housing. A high intensity uniform magnetic field is generated in the bore of the coil. Within the bore is a canister, packed with filter elements, which are referred to as the matrix. The matrix consists of a stack of expanded steel plates arranged with staggered openings to accommodate the material flow. The matrix amplifies the externally applied magnetic field, produces regions of extremely high gradient and provides collection sites for the capture of ferrous contaminants. When feed material flows through the magnetized matrix, the iron bearing contaminants are captured and held, resulting in a high purity product. the non-magnetic product flows freely through the canister with flush water.

    Food Processing And Production Electromagnetic Iron Remover 380V For Dry Powder

    ●Improvement and Innovation 1,The magnetic field control adopts the constant current mode, and the PLC automatically adjusts the voltage to ensure the constant magnetic field 2,The higher box design can contain more layers of matrix to ultimate the filtration. 3, Special coolant circulation design to ensure the coil safety.it can extend to 10years 4,the oil filter can make the circulation smoothly to extend the coolant life; 5,We use the Nomex insulation paper to protect the copper coil, the temperature can resist 200°C, 6,Equipped with matrix disassembly lifting arm, it's very easy for the labors to assemble and disassemble the matrix 7, The control cabinet adopts man-machine touch screen (HMI), which is convenient for the operation, at the same time, the screen display can show the work status, 8,Coating:the canister can be sprayed with PTFE, ETFE, nano-ceramics and other anti-corrosion and wear-resistant materials to reduce the risk of magnetic material mixing.

    ●Model Selection The electromagnetic separator depends on two values to set the sizing, one is the background gauss(the magnetic field strength in the cavity after the magnetic conductive medium is removed) ,the other is the processing. Example: CTS 150-5000

    S/N

    Model Number

    Background strength

    Capacity(m³/h)

    1

    CTS 150

    3500/5000/6500/10000 Gs

    6

    2

    CTS 250

    15

    3

    CTS 300

    21

    4

    CTS 450

    48

    5

    CTS 500

    60

    6

    CTS 600

    72

    7

    CTS 700

    115

    8

    CTS 800

    150
